Hyskraane.ts

CRANES, HEAVY HAUL & PUMPS

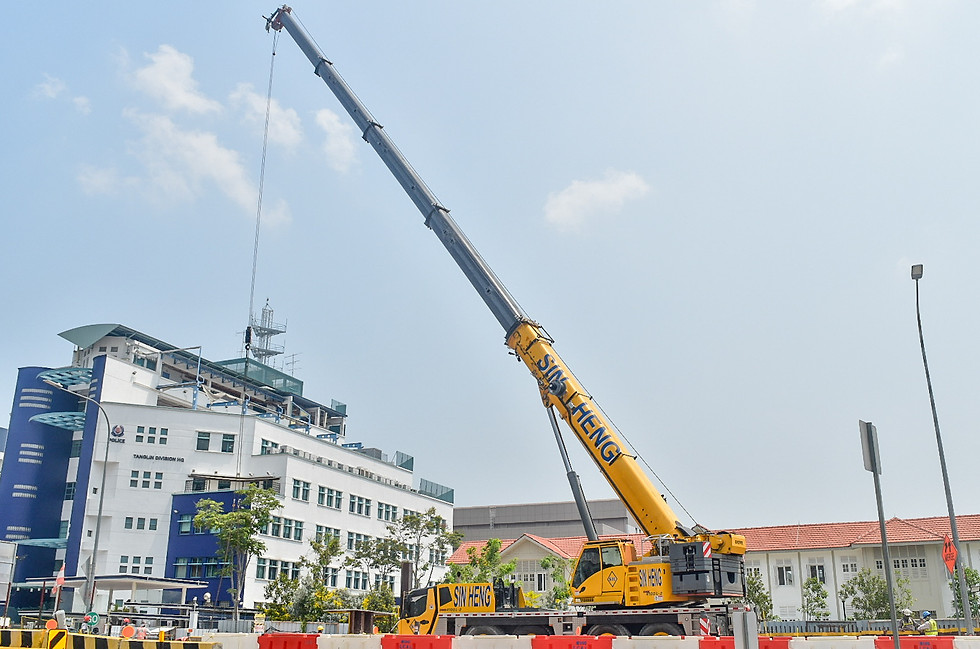

This is Sin Heng’s GMK4100L-2. It is a 100 tonne crane mounted on a 4 axle carrier. It was used for the installation of precast elements. This four-axle carrier has an 8x6x8 drive configuration; axles 1, 3, 4 are driven by a Mercedes Benz 6 cylinder OM470LA with a rated output of 320kWh. Outriggers are extended to 8.7 x 7.2 meters or half, 8.7 x 6.3 meters. 20.4 tonnes of ballast is attached to the superstructure. The crane is equipped with 2 7.2 tonne hoist winches. The 7 section boom has a base length of 11.3 meters and maximum length of 60 meters. The optional bi fold swing-way jib was not attached to the boom at the time. The crane was purchased in late 2022.
